Operation
Metal control chain.
Dimensions
Width 610mm minimum - 3010mm maximum
Drop 600mm minimum - 3010mm maximum
Drop 600mm minimum - 3010mm maximum
Spring Assist
830mm minimum width.
Roller Tube
Regular 43mm
Heavy Duty 44mm
Super Heavy Duty 49mm
Heavy Duty 44mm
Super Heavy Duty 49mm

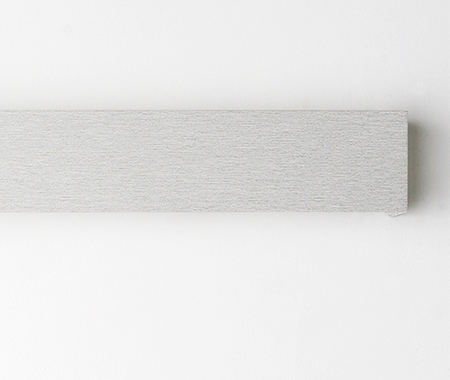

Base Rail
Oval (15mm x 26mm) is standard.
Base rail colours.
Oval, D30 and D30 Silent: Natural Anodised, Pure White, Bone, Sandstone, Dune, Bronze Pearl, Black.
Base rail colours.
Oval, D30 and D30 Silent: Natural Anodised, Pure White, Bone, Sandstone, Dune, Bronze Pearl, Black.
Idler
The idle pin extends up to 10mm in 1mm increments for improved installation.
Brackets
Composition - Press formed steel, pre treated and powder coated.
Colours available are Silver Grey, Pure White, Sandstone and Black.
Colours available are Silver Grey, Pure White, Sandstone and Black.
Chain Control
Rollease Acmeda RB09 high polish finish, comfort grip release wheel, advanced snaplock, screwless assembly, self locating installation feature. Smooth operation with increased load capacity.
Chain Types
Metal chain, Plastic chain (available in Grey, White, Sandstone or Black), Black Nickel chain or Stainless Steel chain (refer to pricing guide for surcharge)
Base Rail
D30 (14mm x 31mm)
D30 Silent (14mm x 31mm)
Flat (11mm x 22mm)
Flat Heavy Duty (41mm x 15mm)
Please refer to pricing guide for surcharge.
D30 Silent (14mm x 31mm)
Flat (11mm x 22mm)
Flat Heavy Duty (41mm x 15mm)
Please refer to pricing guide for surcharge.
Double Brackets
Double Brackets are available in Pure White, Silver Grey, Sandstone and Black.
Same Side: 122 x 122mm
Opposite Side: 100 x 115mm
Front Blind must be right control.
Back Blind must be left control.
Same Side: 122 x 122mm
Opposite Side: 100 x 115mm
Front Blind must be right control.
Back Blind must be left control.
Slimline Double Brackets
Slimline Combo Double Brackets are available in Pure White, Silver Grey, Sandstone and Black.
Measurements are 85mm x 148mm.
Top Back same side control, both blinds need to be standard roll.
Top Front same side control, front blind needs to be reverse roll, back blind needs to be standard roll.
Measurements are 85mm x 148mm.
Top Back same side control, both blinds need to be standard roll.
Top Front same side control, front blind needs to be reverse roll, back blind needs to be standard roll.
Slimline Bracket Covers
Slim Combo Bracket Covers are available in Pure White, Silver Grey, Sandstone and Black.
Easy Link System
Allows multiple blinds (maximum of three) to be controlled by one chain. Please refer to pricing guide for charges.
When ordering easy links on double brackets, you can only order same side or slimline combo double brackets and there is an extra charge (please refer to pricing guide) for the intermediate double bracket additional to the other charges.
May not roll up even with each other.
When ordering easy links on double brackets, you can only order same side or slimline combo double brackets and there is an extra charge (please refer to pricing guide) for the intermediate double bracket additional to the other charges.
May not roll up even with each other.
Knuckle Joints
Knuckle Joints:
Easy Link 45°
Easy Link 90°
Please refer to pricing guide for surcharge.
Easy Link 45°
Easy Link 90°
Please refer to pricing guide for surcharge.
FRS Valance
There are two sizes available 100mm or 120mm.
Colours: Natural Anodised, Snow White, Sandstone and Black.
Not compatible with double brackets.
Please refer to Roller Blind price list for pricing.
Colours: Natural Anodised, Snow White, Sandstone and Black.
Not compatible with double brackets.
Please refer to Roller Blind price list for pricing.
CF 90 Cassette
3 options:
- Box Only: refer to pricing guide for charge
- Side Guides Only: refer to pricing guide for charge
- CF Cassette 90 with Side Channel: please refer to pricing guide for charges.
Available in Round or Square Cassette
Colours available: Natural Anodised, Pure White, Sandstone and Black.
- Box Only: refer to pricing guide for charge
- Side Guides Only: refer to pricing guide for charge
- CF Cassette 90 with Side Channel: please refer to pricing guide for charges.
Available in Round or Square Cassette
Colours available: Natural Anodised, Pure White, Sandstone and Black.
Wire Guide
Wire Stainless Steel
Only suitable for D30, Flat and HD Flat base rails only
Please specify recess or face
Please refer to pricing guide for charges.
Only suitable for D30, Flat and HD Flat base rails only
Please specify recess or face
Please refer to pricing guide for charges.
Bonded Pelmets
Standard Box Sizes (return x drop) (Please Specify)
A. 105mm x 140mm to suit 1 face fit roller
B. 40mm x 170mm to suit 1 recess fit roller
C. 160mm x 150mm to suit same side double bracket rollers
D. 120mm x 190mm to suit slimline combo bracket rollers.
Bonded Pelmets are based on wing joins where required, railroading is possible and price is on application. All sizes given must be internal pelmet size.
Please refer to pricing guide for charges.
A. 105mm x 140mm to suit 1 face fit roller
B. 40mm x 170mm to suit 1 recess fit roller
C. 160mm x 150mm to suit same side double bracket rollers
D. 120mm x 190mm to suit slimline combo bracket rollers.
Bonded Pelmets are based on wing joins where required, railroading is possible and price is on application. All sizes given must be internal pelmet size.
Please refer to pricing guide for charges.
Motorisation
Rollease Acmeda and Somfy.
Please refer to Motorisation Pricing page
Please refer to Motorisation Pricing page
Downloads
Automate ARC Motor
Rollease Acmeda Automate ARC motor information and programming instructions.
Download (pdf)
Push 5 Channel
Automate Push 5 Channel Remote product change manual
Download (pdf)
Automate Basics Wand Motor
Programming Manual
Download (pdf)
Automate Motor Identifying Flow Chart
Rollease Acmeda Automate ARC motor flow chart.
Download (pdf)
Automate Pulse 2
Rollease Acmeda Automate Pulse information and programming instructions.
Download (pdf)
Automate Wire-Free Li-ion Zero Q1.1
Rollease Acmeda Automate Wirefree motor information and programming instructions.
Download (pdf)
Acmeda Warranty
Rollease Acmeda Automate Warranty 2022
Download (pdf)
CF Cassette 90 Round
Rollease Acmeda Box 90 Round image.
Download (pdf)
CF Cassette 90 Square
Rollease Acmeda Box 90 Square image.
Download (pdf)
Easy link
Assembling Easy link manual
Download (pdf)
FRS Brackets
TWC Roller Blind FRS Valance Bracket Information
Download (pdf)
FRS Valance
Rollease Acmeda FRS Valance image.
Download (pdf)
FRS Valance Information
Rollease Acmeda FRS Valance information.
Download (pdf)
Heavy Duty RB10
Rollease Acmeda Heavy Duty RB10 information.
Download (pdf)
Roller Blind Finishes
TWC available Roller Blind finishes.
Download (pdf)
Somfy Installers Guide LS40 Sonesse 40WT
Somfy Sonesse information and programming instructions.
Download (pdf)
Somfy Installers Guide RTS Altus Sonesse RTS
Somfy Altus information and programming instructions.
Download (pdf)
Somfy Installers Guide Rollup 28 Wirefree
Somfy Wirefree information and programming instructions.
Download (pdf)
Somfy HiPro LT50 60 CSI Limit Setting
Somfy LT50 information and programming instructions.
Download (pdf)
Somfy Sonesse 30 WireFree 2nm Li-ion RTS motor
Somfy WireFree programming instructions.
Download (pdf)
Somfy Warranty
Somfy Warranty 2021
Download (pdf)
